PRODUCTS
6SP 30 SERIES
The Vinco 6SP 30 Series outlines a line of very high-flow, multi-stage centrifugal pumps designed for 50Hz power supplies.
Models Available:
- 6SP 30/08 7.5 kW (10.0 HP)
- 6SP 30/13 11.0 kW (15.0 HP)
- 6SP 30/17 15.0 kW (20.0 HP)
Extremely High Flow Rates: Engineered for moving large volumes of water efficiently, making it suitable for demanding applications.
Large Outlet Size: Features a 3-inch outlet designed to handle high flows with minimal restriction.

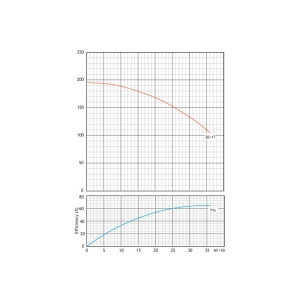

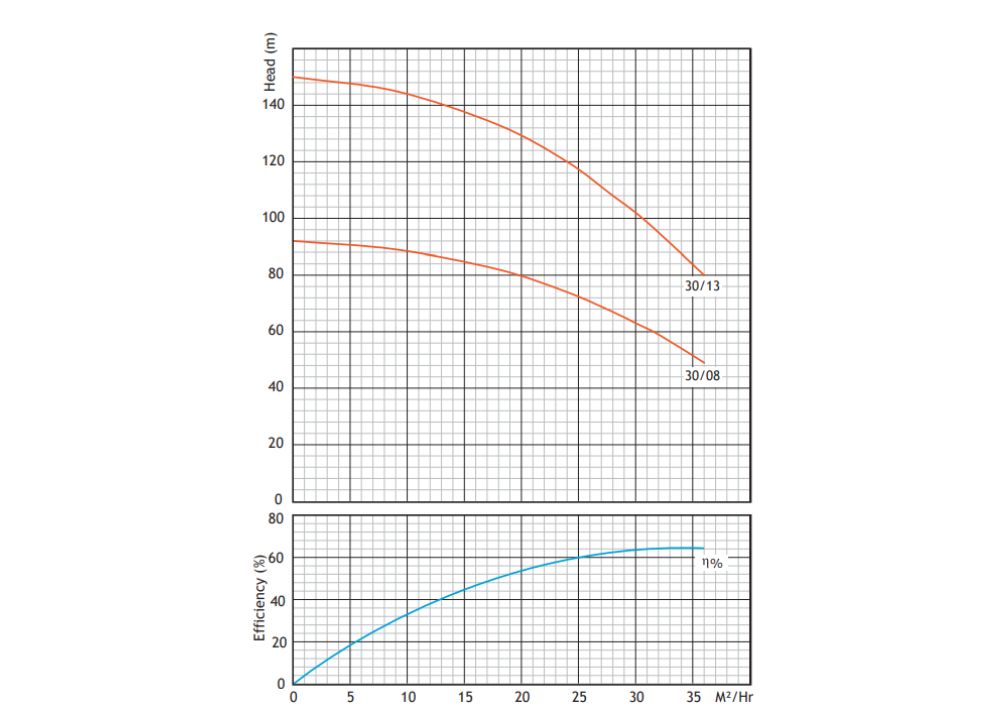

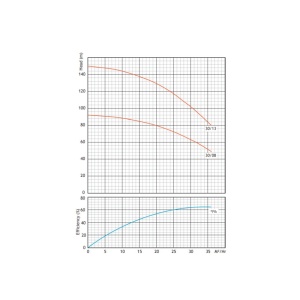

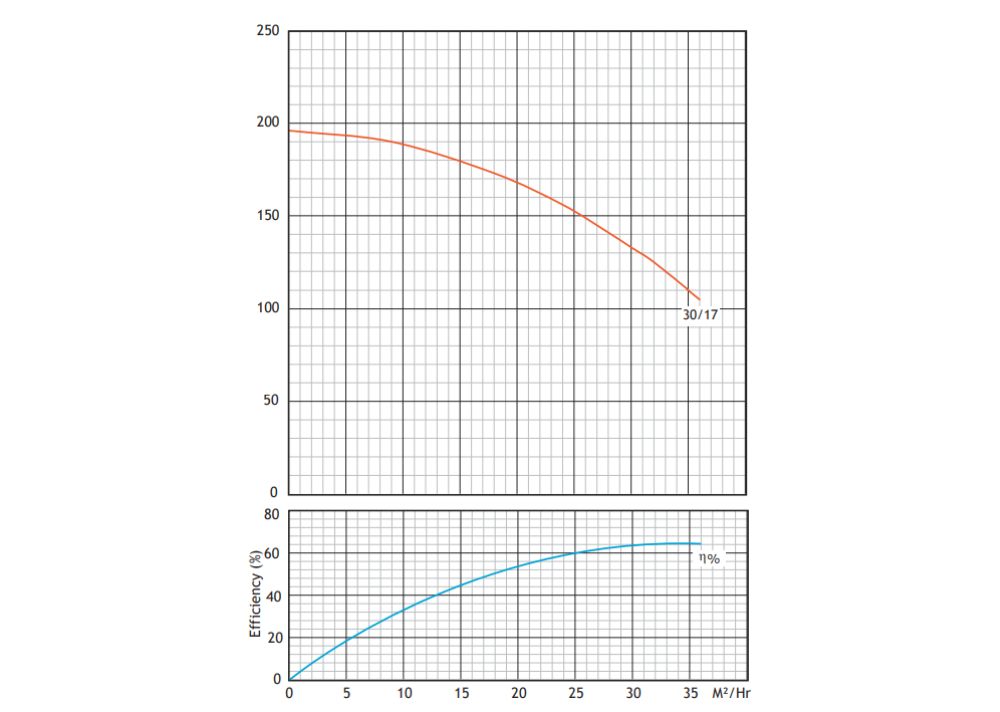

Performance Metrics: The performance chart highlights the pump's ability to maintain pressure at remarkable flow levels. For example, the 6SP 30/13 model can deliver 24.0 m³/h at a pressure of 120 meters.
|
Pump Type |
Power |
Outlet Size |
Weight (Kg) |
Q (m3/H) |
DISCHARGE(Q) |
DN |

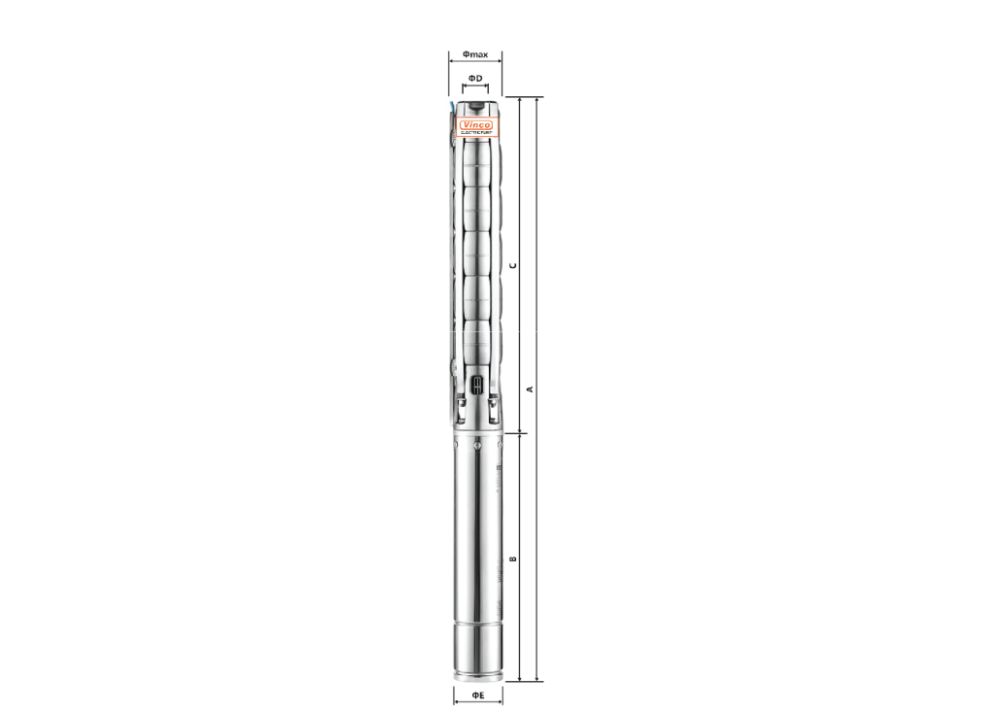

DIMENSIONS & WEIGHT |
|
|||||||||||||
|
0.0 |
9.0 |
18.0 |
24.0 |
28.0 |
30.0 |
32.0 |
36.0 |
||||||||||||||
|
kW |
HP |
TOTAL HEAD IN METERS (M) |
A |
B |
C |
D |
E |
MAX |
|||||||||||||
|
6SP 30/08 |
7.5 |
10.0 |
3” |
17.9 |
H(M) |
92 |
89 |
82 |
74 |
67 |
63 |
59 |
49 |
80 |
1465 |
742 |
723 |
3” |
144 |
145 |
|
|
6SP 30/13 |
11.0 |
15.0 |
3” |
26.9 |
150 |
145 |
133 |
120 |
108 |
102 |
95 |
80 |
80 |
1635 |
777 |
858 |
|||||
|
6SP 30/17 |
15.0 |
20.0 |
3” |
34.1 |
196 |
190 |
173 |
156 |
141 |
133 |
125 |
105 |
80 |
1845 |
807 |
993 |
|||||
